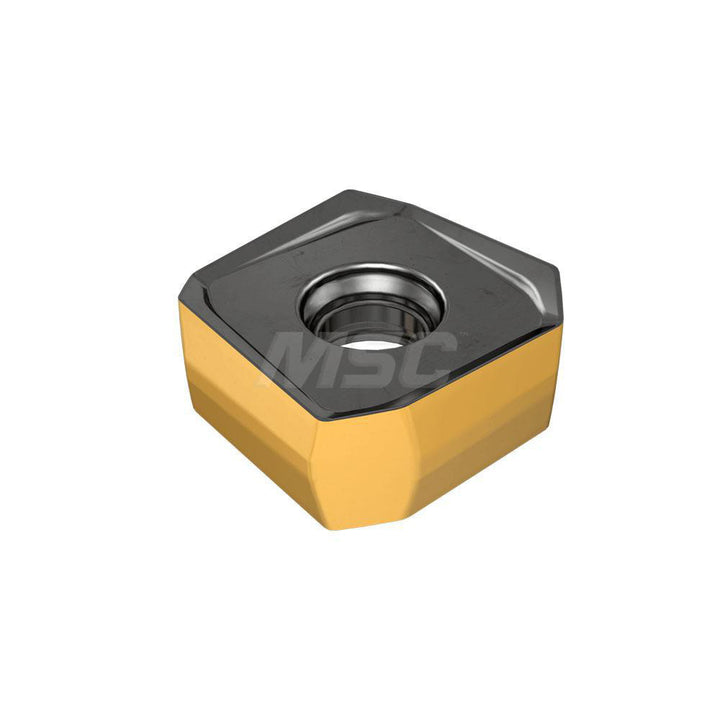

S845 SXCU 160608AD-RMM Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606474

Iscar

S845 SXCU 160608AD-RMM Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606474

MFR# 5606474ISO/ANSI# S845 SXCU 160608AD-RMMCat# S845 SXCU 160608AD-RMM IC330Series HELIDO

$38.34List $49.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC330
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606474 is a S845 SXCU 160608AD-RMM solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeS845 SXCU 160608AD-RMM IC330
Chip breakerRMM
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityS845 F45SX
Cutting edge effective length0.6122
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.6378
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size16
Insert size code160608
Insert styleSXCU
Iso codeS845 SXCU 160608AD-RMM
Length0.6437
Length range0.6000 to 0.6500
Manufacturers catalog numberS845 SXCU 160608AD-RMM IC330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2810
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2930
Thickness range0.2500 to 0.3500
Width0.6437
