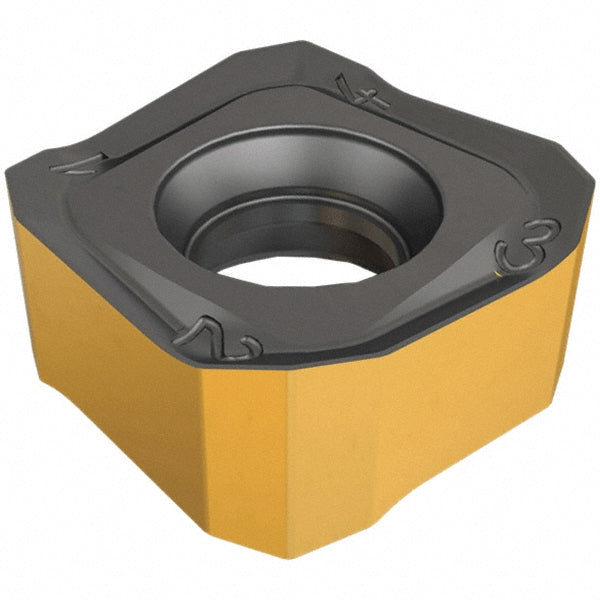

S865 SNMU 1305ZNTR-MM Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606520

Iscar

S865 SNMU 1305ZNTR-MM Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606520

MFR# 5606520ISO/ANSI# S865 SNMU 1305ZNTR-MMCat# S865 SNMU 1305ZNTR-MM IC330Series HELIDO

$23.82List $30.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC330
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606520 is a S865 SNMU 1305ZNTR-MM solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeS865 SNMU 1305ZNTR-MM IC330
Chip breakerMM
Coating finishTiCN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityS865
Cutting edge effective length0.4921
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.5120
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert styleSNMU
Iso codeS865 SNMU 1305ZNTR-MM
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberS865 SNMU 1305ZNTR-MM IC330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle24
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2170
Thickness range0.2000 to 0.2200
Width0.5120
