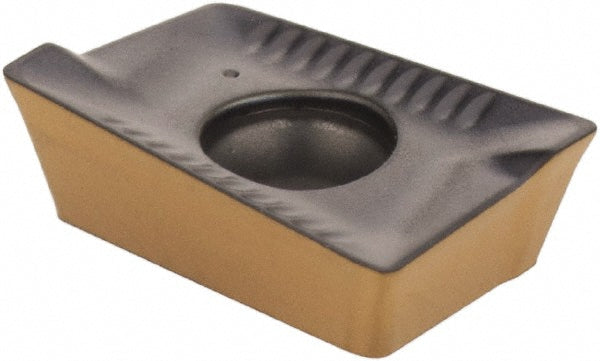

APKT 1003PDTR-76 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606581

Iscar

APKT 1003PDTR-76 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606581

MFR# 5606581ISO/ANSI# APKT 1003PDTR-76Cat# APKT 1003PDTR-76 IC830Series HELIMILL

$18.81List $24.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606581 is a APKT 1003PDTR-76 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPKT 1003PDTR-76 IC830
Chip breaker76
Coating finishAlTiN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityHM90-10
Cutting edge effective length0.3860
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeAPKT 1003PDTR-76
Length0.4330
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 1003PDTR-76 IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1370
Thickness range0.1250 to 0.1500
Width0.2640
