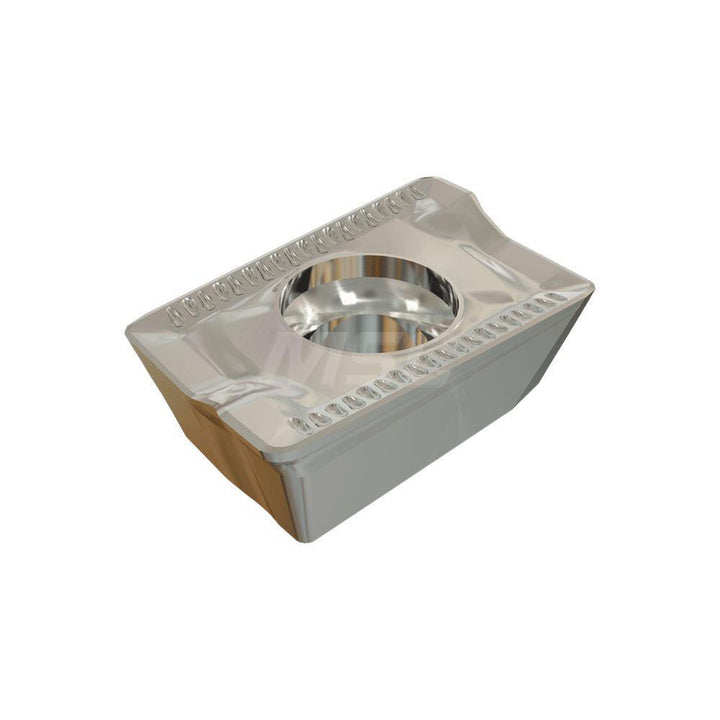

ADKT 1505PDTR-76 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606588

Iscar

ADKT 1505PDTR-76 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606588

MFR# 5606588ISO/ANSI# ADKT 1505PDTR-76Cat# ADKT 1505PDTR-76 IC830Series HELIMILL

$22.25List $28.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606588 is a ADKT 1505PDTR-76 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeADKT 1505PDTR-76 IC830
Chip breaker76
Coating finishAlTiN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityETS; FTS; ADK; E90
Cutting edge effective length0.5470
Cutting edge styleT-Land
Included angle degree85
Inscribed circle0.3760
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKT
Iso codeADKT 1505PDTR-76
Length0.6200
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 1505PDTR-76 IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2220
Thickness range0.2200 to 0.2350
Width0.3760
