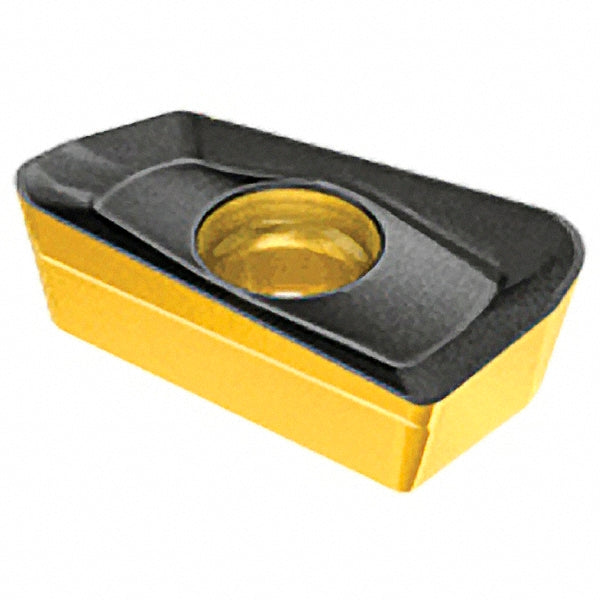

HP ANKT 0702 PN-R Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606596

Iscar

HP ANKT 0702 PN-R Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606596

MFR# 5606596ISO/ANSI# HP ANKT 0702 PN-RCat# HP ANKT 0702 PN-R IC330Series HELIPLUS

$18.66List $23.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC330
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606596 is a HP ANKT 0702 PN-R solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHP ANKT 0702 PN-R IC330
Chip breakerR
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityHP ANK-07; HP.90-07
Cutting edge effective length0.3030
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.1770
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code0702
Insert styleANKT
Iso codeHP ANKT 0702 PN-R
Length0.3430
Length range0.3200 to 0.4000
Manufacturers catalog numberHP ANKT 0702 PN-R IC330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3030
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle32
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1020
Thickness range0.1000 to 0.1250
Width0.1772
