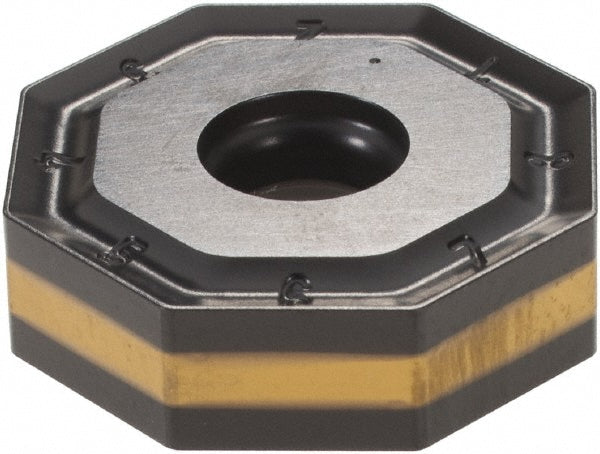

ONMU 080608-TN-MM Solid Carbide Insert, Grade IC5400, TiCN - Iscar 5606671

Iscar

ONMU 080608-TN-MM Solid Carbide Insert, Grade IC5400, TiCN - Iscar 5606671

MFR# 5606671ISO/ANSI# ONMU 080608-TN-MMCat# ONMU 080608-TN-MM IC5400Series 16MILL

$31.93List $40.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC5400
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606671 is a ONMU 080608-TN-MM solid carbide indexable insert, grade IC5400, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeONMU 080608-TN-MM IC5400
Chip breakerMM
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutter series compatibilityF45NM; F45WG
Cutting edge effective length0.2170
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7953
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size08
Insert size code080608
Insert styleONMU
Iso codeONMU 080608-TN-MM
Length0.7953
Length range0.7000 to 0.9000
Manufacturers catalog numberONMU 080608-TN-MM IC5400
Manufacturer gradeIC5400
Material applicationSteel; Stainless Steel
Maximum depth of cut0.2170
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle24
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.7953
