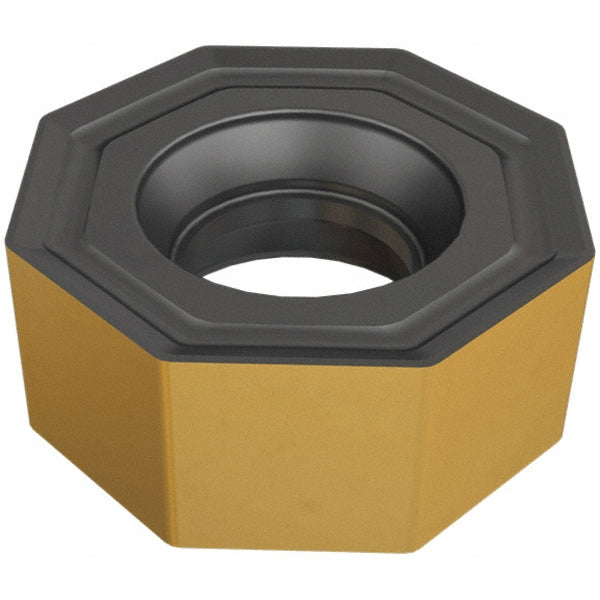

ONMU 050505-TN-MM Solid Carbide Insert, Grade IC5400, TiCN - Iscar 5606674

Iscar

ONMU 050505-TN-MM Solid Carbide Insert, Grade IC5400, TiCN - Iscar 5606674

MFR# 5606674ISO/ANSI# ONMU 050505-TN-MMCat# ONMU 050505-TN-MM IC5400Series HELIDO

$26.16List $33.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC5400
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606674 is a ONMU 050505-TN-MM solid carbide indexable insert, grade IC5400, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeONMU 050505-TN-MM IC5400
Chip breakerMM
Coating finishTiCN
Coating processMTCVD
Corner radius0.0197
Cutter series compatibilityFF SOF; SOF45; SOE45
Cutting edge effective length0.1380
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code050505
Insert styleONMU
Iso codeONMU 050505-TN-MM
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberONMU 050505-TN-MM IC5400
Manufacturer gradeIC5400
Material applicationSteel; Stainless Steel
Maximum depth of cut0.1380
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle24
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2000
Thickness range0.2000 to 0.2200
Width0.5118
