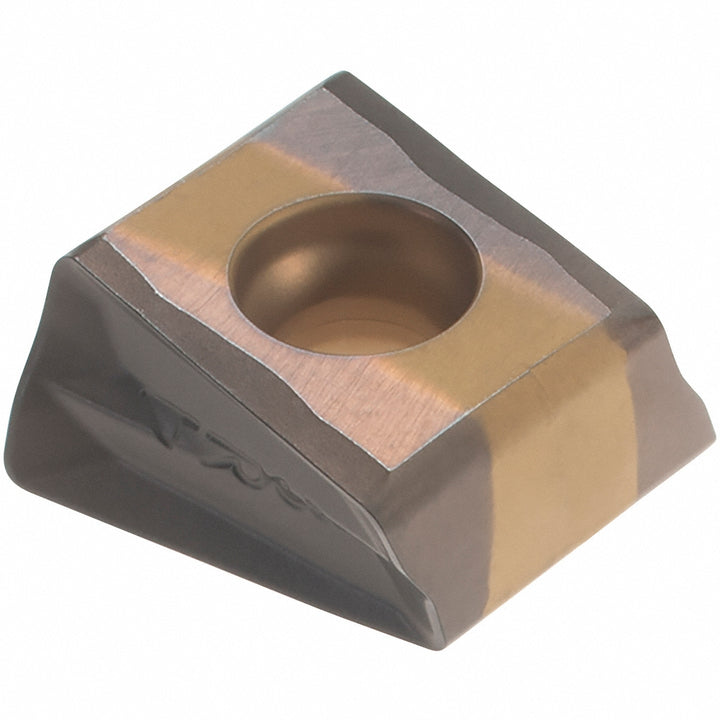

T490 LNMT 1306PNTR Solid Carbide Insert, Grade IC5400, TiCN - Iscar 5606675

Iscar

T490 LNMT 1306PNTR Solid Carbide Insert, Grade IC5400, TiCN - Iscar 5606675

MFR# 5606675ISO/ANSI# T490 LNMT 1306PNTRCat# T490 LNMT 1306PNTR IC5400Series HELITANG

$27.88List $35.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC5400
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606675 is a T490 LNMT 1306PNTR solid carbide indexable insert, grade IC5400, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeT490 LNMT 1306PNTR IC5400
Chip breakerPNTR
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutter series compatibilityT490 LNK13
Cutting edge effective length0.5409
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2620
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size13
Insert size code1306
Insert styleLNMT
Iso codeT490 LNMT 1306PNTR
Length0.5409
Length range0.5000 to 0.6000
Manufacturers catalog numberT490 LNMT 1306PNTR IC5400
Manufacturer gradeIC5400
Material applicationSteel; Stainless Steel
Maximum depth of cut0.4920
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5140
Thickness range0.5000+
Width0.2620
