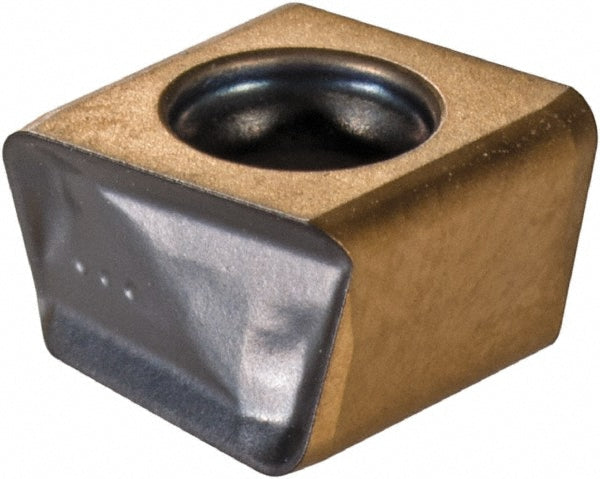

HTP LNHT 0604 ER Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606734

Iscar

HTP LNHT 0604 ER Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606734

MFR# 5606734ISO/ANSI# HTP LNHT 0604 ERCat# HTP LNHT 0604 ER IC830Series TANGPLUNGE

$26.16List $33.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606734 is a HTP LNHT 0604 ER solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHTP LNHT 0604 ER IC830
Chip breakerER
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHTP LN06
Cutting edge effective length0.2559
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.1600
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size06
Insert size code0604
Insert styleLNHT
Iso codeHTP LNHT 0604 ER
Length0.2559
Length range0.0000 to 0.3200
Manufacturers catalog numberHTP LNHT 0604 ER IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2670
Thickness range0.2500 to 0.3500
Width0.1600
