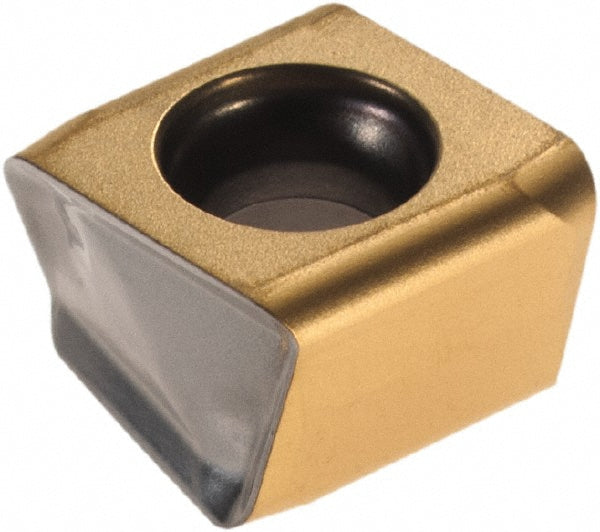

HTP LNHT 0604 ER Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606736

Iscar

HTP LNHT 0604 ER Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606736

MFR# 5606736ISO/ANSI# HTP LNHT 0604 ERCat# HTP LNHT 0604 ER IC330Series TANGPLUNGE

$22.88List $29.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC330
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606736 is a HTP LNHT 0604 ER solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHTP LNHT 0604 ER IC330
Chip breakerER
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHTP LN06
Cutting edge effective length0.2559
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.1600
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size06
Insert size code0604
Insert styleLNHT
Iso codeHTP LNHT 0604 ER
Length0.2559
Length range0.0000 to 0.3200
Manufacturers catalog numberHTP LNHT 0604 ER IC330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2559
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2670
Thickness range0.2500 to 0.3500
Width0.1600
