Iscar

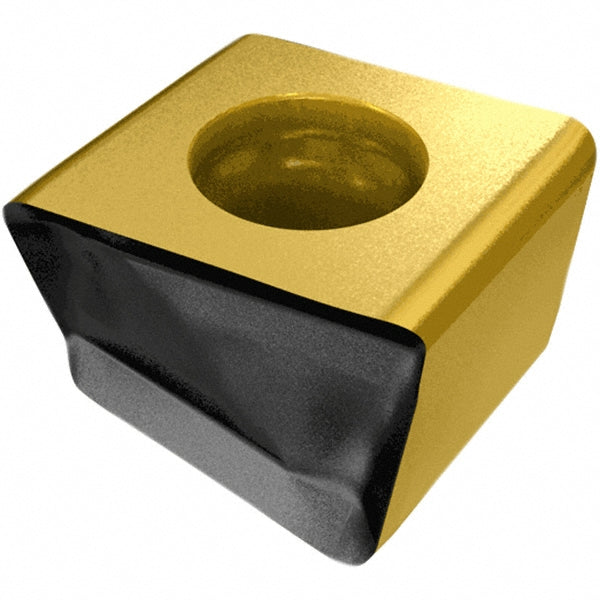

HTP LNHT 0604 ETR Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606739
MFR# 5606739ISO/ANSI# HTP LNHT 0604 ETRCat# HTP LNHT 0604 ETR IC808Series TANGPLUNGE
$26.16List $33.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5606739 is a HTP LNHT 0604 ETR solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeHTP LNHT 0604 ETR IC808
Chip breakerETR
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHTP LN06
Cutting edge effective length0.2559
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.1600
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size06
Insert size code0604
Insert styleLNHT
Iso codeHTP LNHT 0604 ETR
Length0.2559
Length range0.0000 to 0.3200
Manufacturers catalog numberHTP LNHT 0604 ETR IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2670
Thickness range0.2500 to 0.3500
Width0.1600
