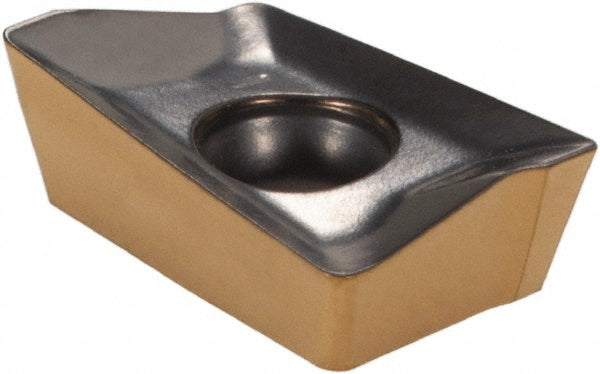

APKR 1003PDR-HM Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606775

Iscar

APKR 1003PDR-HM Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606775

MFR# 5606775ISO/ANSI# APKR 1003PDR-HMCat# APKR 1003PDR-HM IC330Series HELIMILL

$23.66List $30.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC330
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606775 is a APKR 1003PDR-HM solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPKR 1003PDR-HM IC330
Chip breakerHM
Coating finishTiCN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityHM90-10
Cutting edge effective length0.4060
Cutting edge styleT-Land
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKR
Iso codeAPKR 1003PDR-HM
Length0.4410
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKR 1003PDR-HM IC330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle28
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1480
Thickness range0.1250 to 0.1500
Width0.2640
