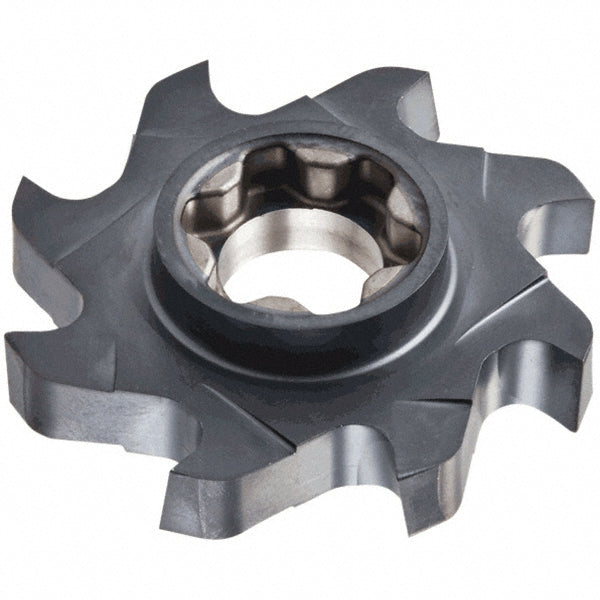

Carbide Insert, Grade IC908, TiAlN - Iscar 5606800

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5606800

MFR# 5606800Series SD-SP

$149.94List $192.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes8
GradeIC908
CoatingTiAlN

Description

The Iscar 5606800 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0158
Cutting diameter1.2490
Cutting width0.1182in
Functional length0.2660
Included angle degree90
Insert handRight Hand
Insert sizeD32-3.0-R0.4
Lead angle90
Length of cut0.3940in
Manufacturers catalog number5606800
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3940
Milling tip full descriptionSD D32-3.0-R0.4-SP11
Milling tip styleSD-SP
Milling tip typeT-Slot
Number of flutes8
Overall length in17/64in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
