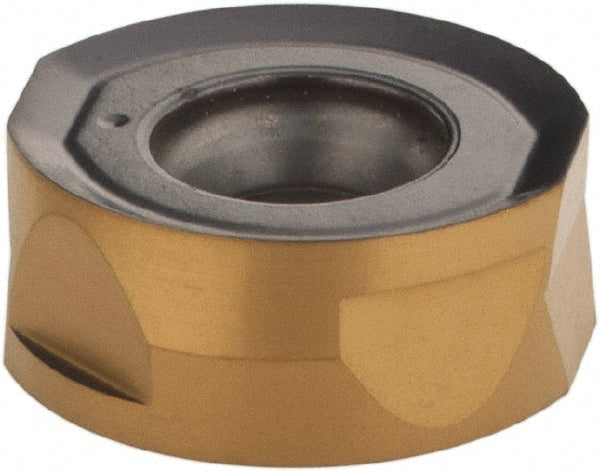

H400 RNHU 1004-HP Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606805

Iscar

H400 RNHU 1004-HP Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606805

MFR# 5606805ISO/ANSI# H400 RNHU 1004-HPCat# H400 RNHU 1004-HP IC830Series HELIDO

$21.47List $27.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606805 is a H400 RNHU 1004-HP solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeH400 RNHU 1004-HP IC830
Chip breakerHP
Coating finishAlTiN
Coating processPVD
Corner radius0.1969
Cutter series compatibilityH400-10
Cutting edge effective length0.6299
Cutting edge styleContinuous
Included angle degree360
Inscribed circle0.3620
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size10
Insert size code1004
Insert styleRNHU
Iso codeH400 RNHU 1004-HP
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberH400 RNHU 1004-HP IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.1969
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle14
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1590
Thickness range0.1500 to 0.1750
Width0.6299
