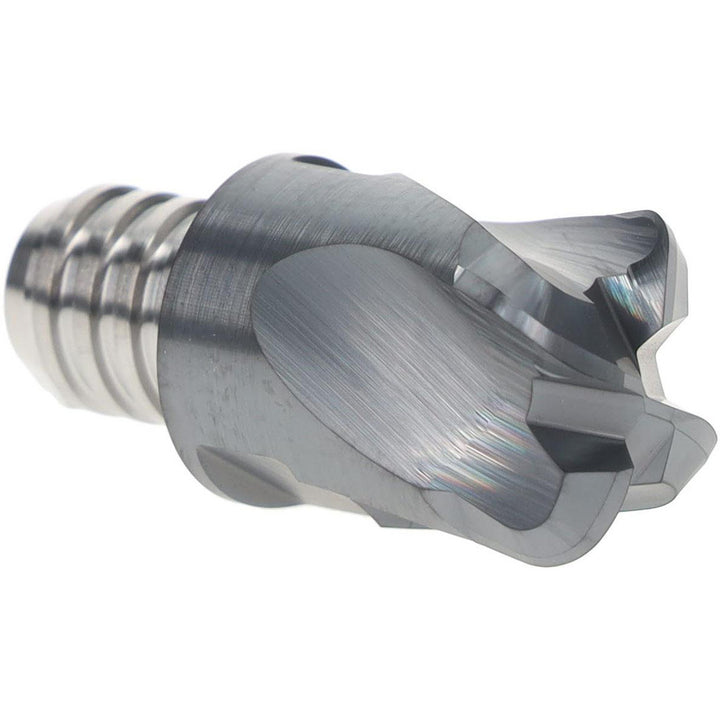

Carbide Insert, Grade IC903, TiAlN - Iscar 5606818

Iscar

Carbide Insert, Grade IC903, TiAlN - Iscar 5606818

MFR# 5606818Series MM EFF

$192.09List $246.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC903
CoatingTiAlN

Description

The Iscar 5606818 is a carbide indexable insert, grade IC903, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle48degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius3.2500
Cutting diameter0.6304
Cutting width0.6304in
Extension from holder in0.8070
Functional length0.8077
Included angle degree83
Insert handRight Hand
Insert size160T5R3.25
Lead angle97
Length of cut in1/32in
Manufacturers catalog number5606818
Manufacturer gradeIC903
Material gradeUltra Fine Grain
Maximum depth of cut0.031
Milling tip full descriptionMM EFF160T5R3.25-4T10
Milling tip styleMM EFF
Milling tip typeHigh Feed
Number of flutes4
Overall length0.8077in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
