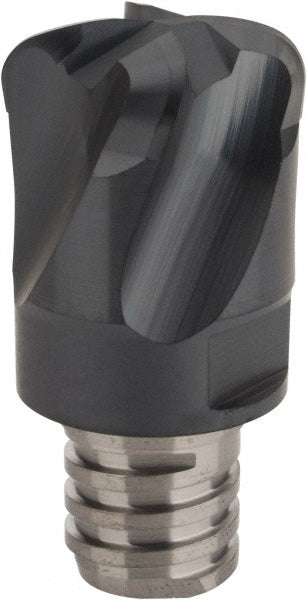

Carbide Insert, Grade IC903, TiAlN - Iscar 5606819

Iscar

Carbide Insert, Grade IC903, TiAlN - Iscar 5606819

MFR# 5606819Series MM EFF

$221.36List $283.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC903
CoatingTiAlN

Description

The Iscar 5606819 is a carbide indexable insert, grade IC903, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle48degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius4.0200
Cutting diameter0.7870
Cutting width0.7870in
Extension from holder in1.0040
Functional length1.0040
Included angle degree83
Insert handRight Hand
Insert size200T6R4.02
Lead angle97
Length of cut0.0390in
Manufacturers catalog number5606819
Manufacturer gradeIC903
Material gradeUltra Fine Grain
Maximum depth of cut0.0390
Milling tip full descriptionMM EFF200T6R4.02-4T12
Milling tip styleMM EFF
Milling tip typeHigh Feed
Number of flutes4
Overall length1.0040in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
