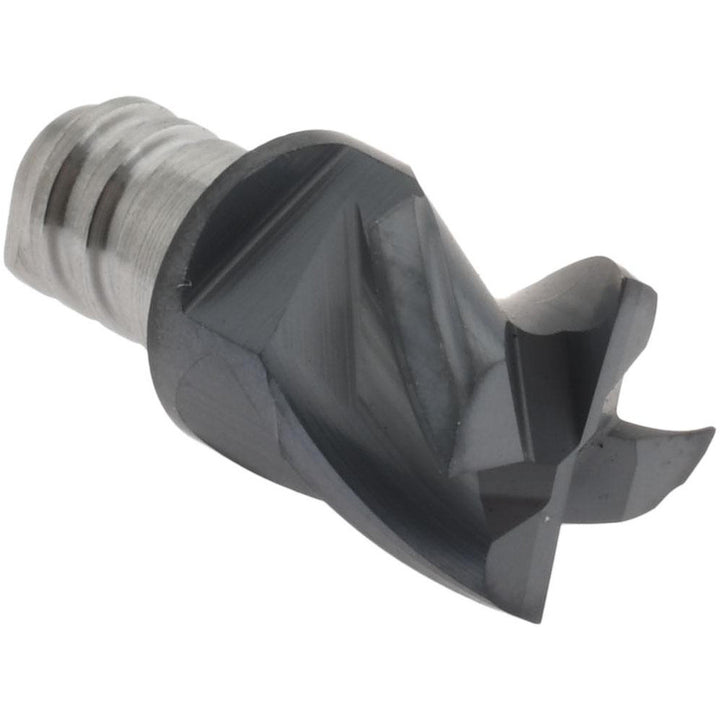

Carbide Insert, Grade IC908, TiAlN - Iscar 5606851

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5606851

MFR# 5606851Series MM EC-CF

$91.36List $117.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5606851 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.3120
Cutting width0.3120in
Extension from holder in0.3930
Functional length0.3930
Helix angle38
Included angle degree90
Insert handRight Hand
Insert size312E20R0
Lead angle90
Length of cut0.2200in
Manufacturers catalog number5606851
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2200
Milling tip full descriptionMM EC312E20R0-CF-4T05
Milling tip styleMM EC-CF
Milling tip typeRoughing
Number of flutes4
Overall length0.3930in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
