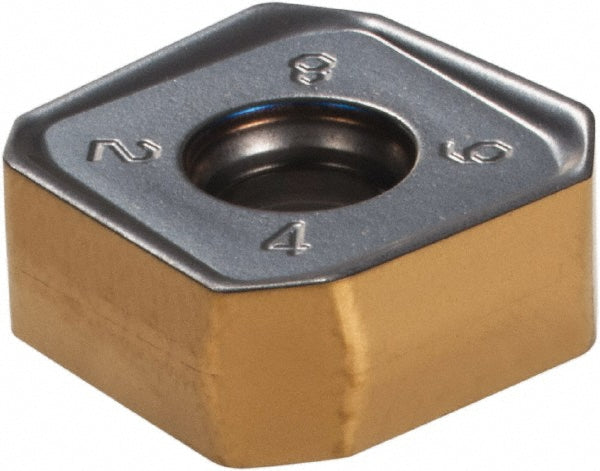

S845 SXMU 1606ADTR-RM Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5606856

Iscar

S845 SXMU 1606ADTR-RM Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5606856

MFR# 5606856ISO/ANSI# S845 SXMU 1606ADTR-RMCat# S845 SXMU 1606ADTR-RM IC810Series HELIDO

$35.13List $45.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Iscar 5606856 is a S845 SXMU 1606ADTR-RM solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.

Specifications

Ansi codeS845 SXMU 1606ADTR-RM IC810
Chip breakerRM
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityS845 F45SX
Cutting edge effective length0.6122
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.6437
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size16
Insert size code1606
Insert styleSXMU
Iso codeS845 SXMU 1606ADTR-RM
Length0.6437
Length range0.6000 to 0.6500
Manufacturers catalog numberS845 SXMU 1606ADTR-RM IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Maximum depth of cut0.2810
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2930
Thickness range0.2500 to 0.3500
Width0.6437
