Iscar

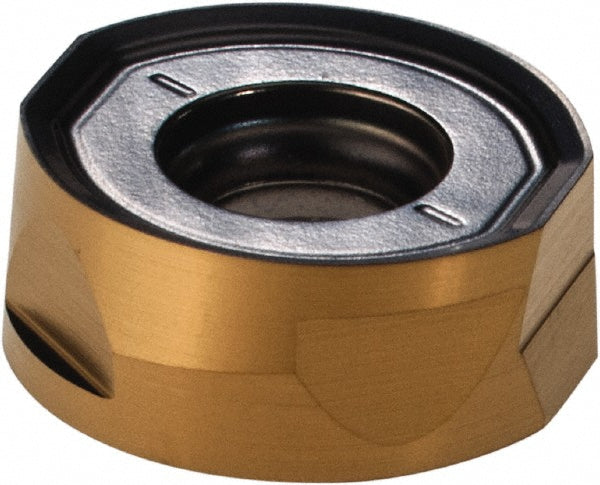

H400 RNHU 1205-ML Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606901
MFR# 5606901ISO/ANSI# H400 RNHU 1205-MLCat# H400 RNHU 1205-ML IC808Series HELIDO
$23.66List $30.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5606901 is a H400 RNHU 1205-ML solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeH400 RNHU 1205-ML IC808
Chip breakerML
Coating finishTiAlN
Coating processPVD
Corner radius0.2362
Cutter series compatibilityH400-12
Cutting edge effective length0.4724
Cutting edge styleContinuous
Included angle degree360
Inscribed circle0.4330
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1205
Insert styleRNHU
Iso codeH400 RNHU 1205-ML
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberH400 RNHU 1205-ML IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle6
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.4724
