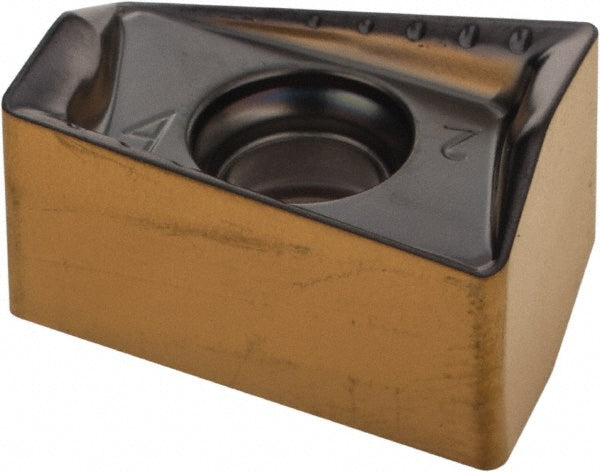

H490 ANKX 1706PNTR-RM Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606911

Iscar

H490 ANKX 1706PNTR-RM Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606911

MFR# 5606911ISO/ANSI# H490 ANKX 1706PNTR-RMCat# H490 ANKX 1706PNTR-RM IC808Series HELIDO

$30.99List $39.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5606911 is a H490 ANKX 1706PNTR-RM solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeH490 ANKX 1706PNTR-RM IC808
Chip breakerRM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityH490 ANK17
Cutting edge effective length0.6300
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.4410
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code1706
Insert styleANKX
Iso codeH490 ANKX 1706PNTR-RM
Length0.6575
Length range0.6500 to 0.7000
Manufacturers catalog numberH490 ANKX 1706PNTR-RM IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.6300
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4090
Thickness range0.3500 to 0.5000
Width0.4410
