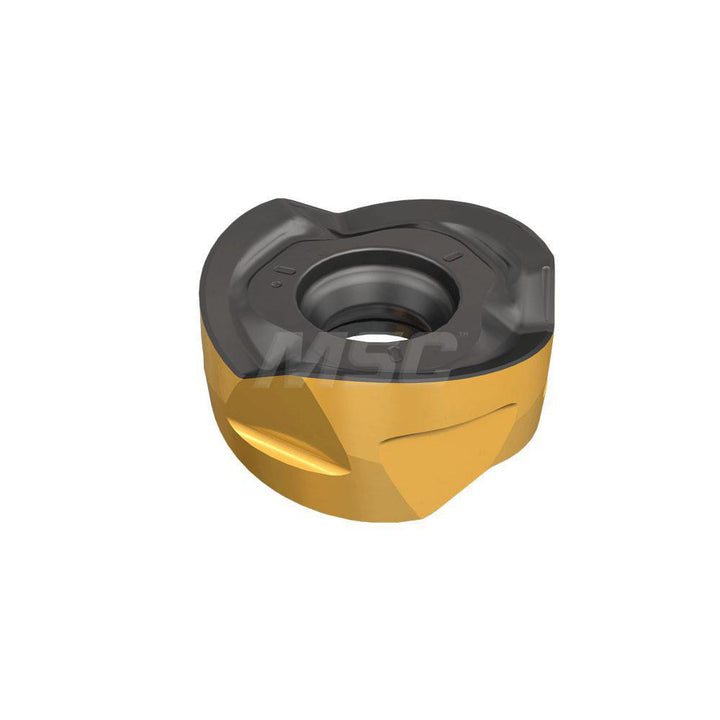

H606 RXCU 1206-AXMP Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606917

Iscar

H606 RXCU 1206-AXMP Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606917

MFR# 5606917ISO/ANSI# H606 RXCU 1206-AXMPCat# H606 RXCU 1206-AXMP IC808Series HELIDO

$28.76List $36.20 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5606917 is a H606 RXCU 1206-AXMP solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeH606 RXCU 1206-AXMP IC808
Chip breakerAXMP
Coating finishTiAlN
Coating processPVD
Corner radius0.2362
Cutter series compatibilityH606 FR12
Cutting edge effective length0.4724
Cutting edge styleSharp
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1206
Insert styleRXCU
Iso codeH606 RXCU 1206-AXMP
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberH606 RXCU 1206-AXMP IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2320
Thickness range0.2200 to 0.2350
Width0.4724
