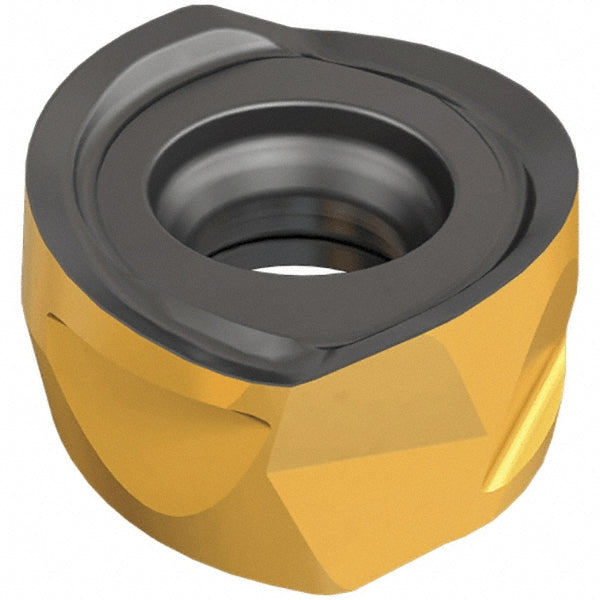

H400 RNHU 1606-ML Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606933
MFR# 5606933ISO/ANSI# H400 RNHU 1606-MLCat# H400 RNHU 1606-ML IC808Series HELIDO
$30.45List $39.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5606933 is a H400 RNHU 1606-ML solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeH400 RNHU 1606-ML IC808
Chip breakerML
Coating finishTiAlN
Coating processPVD
Corner radius0.3150
Cutter series compatibilityH400-16
Cutting edge effective length0.6299
Cutting edge styleContinuous
Included angle degree360
Inscribed circle0.5790
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1606
Insert styleRNHU
Iso codeH400 RNHU 1606-ML
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberH400 RNHU 1606-ML IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle6
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.3070
Thickness range0.2500 to 0.3500
Width0.6299
