Iscar

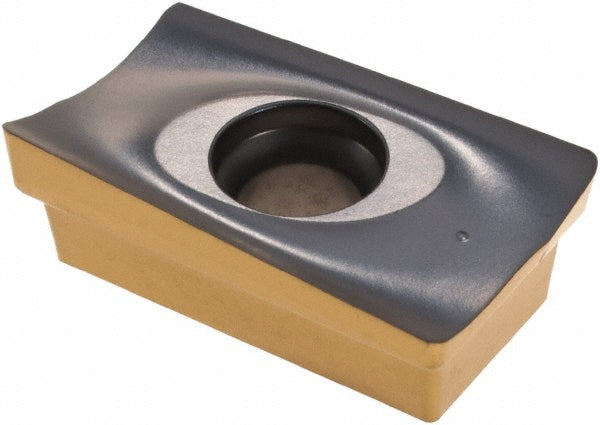

P290 ACCT 1806PDR-HL Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606944
MFR# 5606944ISO/ANSI# P290 ACCT 1806PDR-HLCat# P290 ACCT 1806PDR-HL IC830Series MILLSHRED
$37.82List $47.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5606944 is a P290 ACCT 1806PDR-HL solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeP290 ACCT 1806PDR-HL IC830
Chip breakerHL
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityP290
Cutting edge effective length0.7090
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.4230
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1806
Insert styleACCT
Iso codeP290 ACCT 1806PDR-HL
Length0.7640
Length range0.7000 to 0.9000
Manufacturers catalog numberP290 ACCT 1806PDR-HL IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.7090
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2560
Thickness range0.2500 to 0.3500
Width0.4230
