Iscar

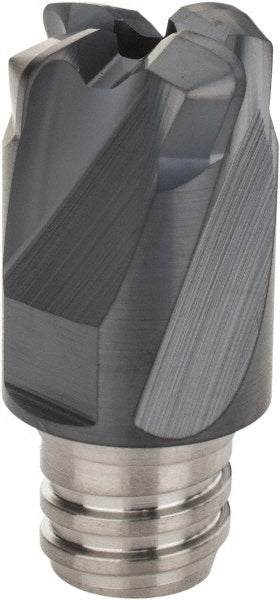

Carbide Insert, Grade IC908, TiAlN - Iscar 5607215
MFR# 5607215Series MM EFF
$139.38List $175.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN
Description
The Iscar 5607215 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle48degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Corner radius1.8000
Cutting diameter0.4720
Cutting width0.4720in
Extension from holder in0.6496
Functional length0.6500
Included angle degree83
Insert handRight Hand
Insert size120T4R1.8
Lead angle97
Length of cut0.0240in
Manufacturers catalog number5607215
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.0240
Milling tip full descriptionMM EFF120T4R1.8-4T08H
Milling tip styleMM EFF
Milling tip typeHigh Feed
Number of flutes4
Overall length0.6500in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
