Iscar

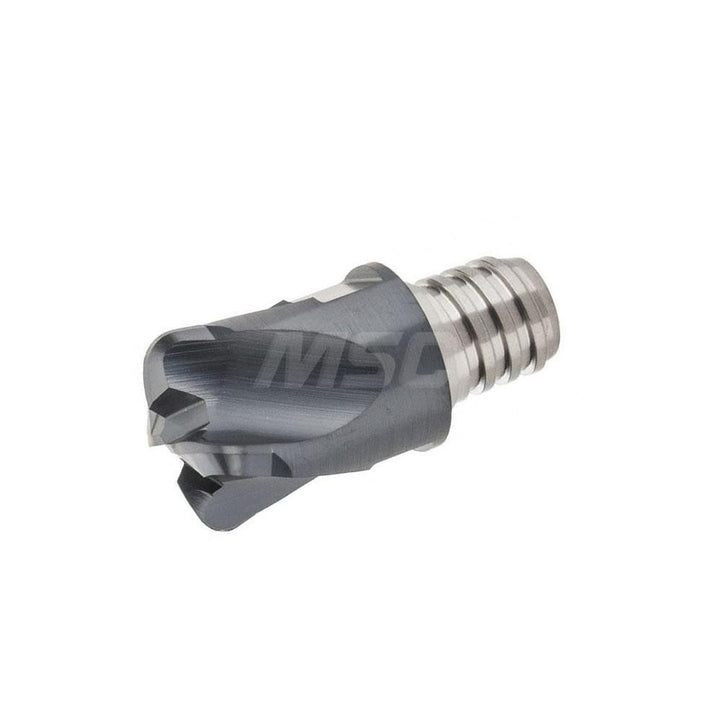

Carbide Insert, Grade IC908, TiAlN - Iscar 5607216
MFR# 5607216Series MM EFF
$220.67List $277.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN
Description
The Iscar 5607216 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle48degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Corner radius2.2000
Cutting diameter0.6300
Cutting width0.6300in
Extension from holder in0.8070
Functional length0.8070
Included angle degree83
Insert handRight Hand
Insert size160T5R2.2
Lead angle97
Length of cut in1/32in
Manufacturers catalog number5607216
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.031
Milling tip full descriptionMM EFF160T5R2.2-4T10H
Milling tip styleMM EFF
Milling tip typeHigh Feed
Number of flutes4
Overall length0.8070in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
