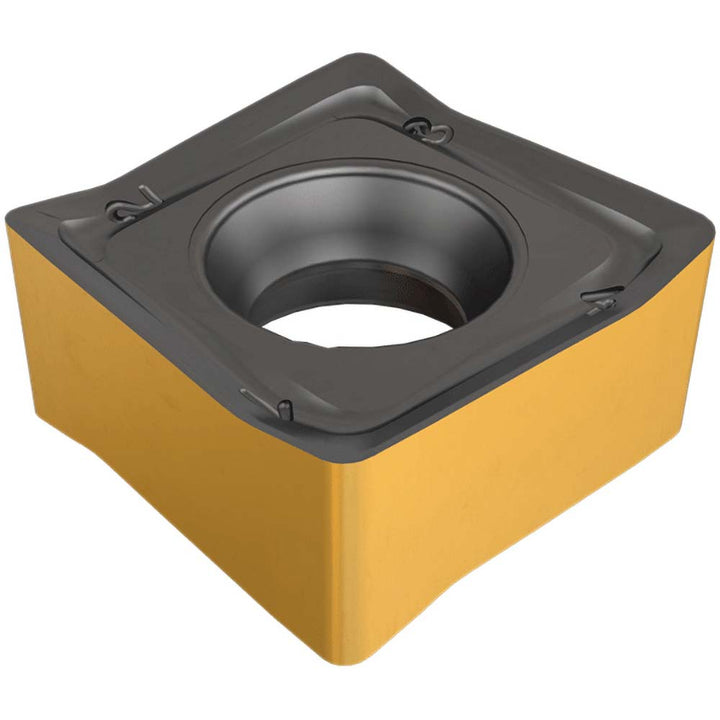

S890 SNMU 1305PNTN Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5607219

Iscar

S890 SNMU 1305PNTN Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5607219

MFR# 5607219ISO/ANSI# S890 SNMU 1305PNTNCat# S890 SNMU 1305PNTN IC810Series HELIDO

$27.26List $34.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Iscar 5607219 is a S890 SNMU 1305PNTN solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.

Specifications

Ansi codeS890 SNMU 1305PNTN IC810
Chip breakerPNTN
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityS890-13
Cutting edge effective length0.3540
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert styleSNMU
Iso codeS890 SNMU 1305PNTN
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberS890 SNMU 1305PNTN IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Maximum depth of cut0.3540
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle23
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2240
Thickness range0.2200 to 0.2350
Width0.5120
