Iscar

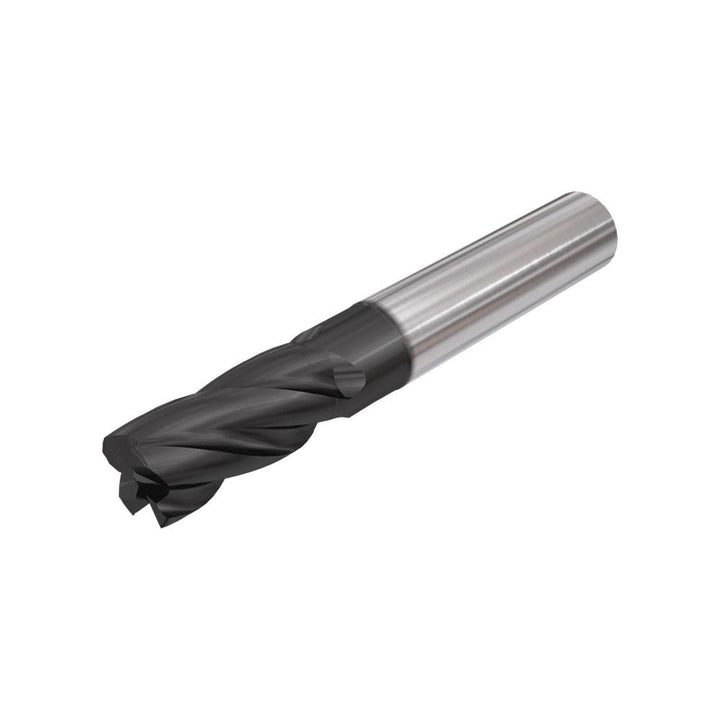

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Iscar 5607226

MFR# 5607226Series ECI-H4R-CF

$124.70List $159.70 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Iscar 5607226 is a 3/8 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3/4 length of cut, 3 overall length. Series ECI-H4R-CF.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleVariable

Length of cut in3/4

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerancee8

Number of flutes4

Overall length in3

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length1.2500

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
