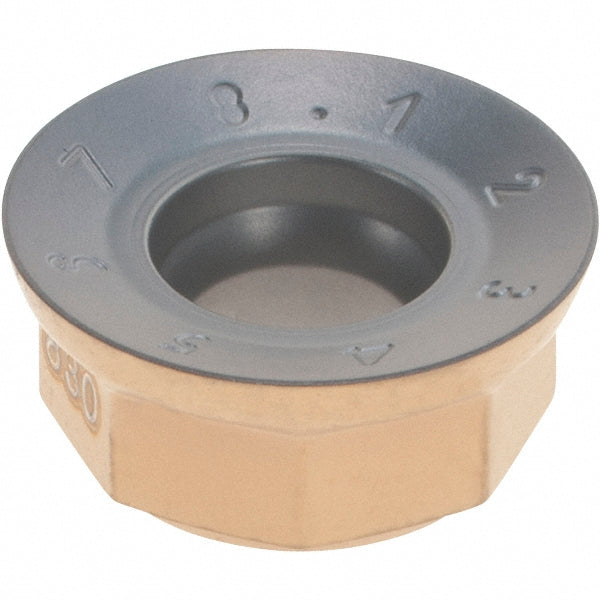

RXMT 1607N Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607245

Iscar

RXMT 1607N Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607245

MFR# 5607245ISO/ANSI# RXMT 1607NCat# RXMT 1607N IC830Series HELIDO

$25.22List $32.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5607245 is a RXMT 1607N solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeRXMT 1607N IC830
Chip breakerN
Coating finishAlTiN
Coating processPVD
Corner radius0.3130
Cutter series compatibilitySOF45; SOE45
Cutting edge effective length0.6299
Cutting edge styleHoned
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1607
Insert styleRXMT
Iso codeRXMT 1607N
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberRXMT 1607N IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2760
Thickness range0.2500 to 0.3500
Width0.6299
