Iscar

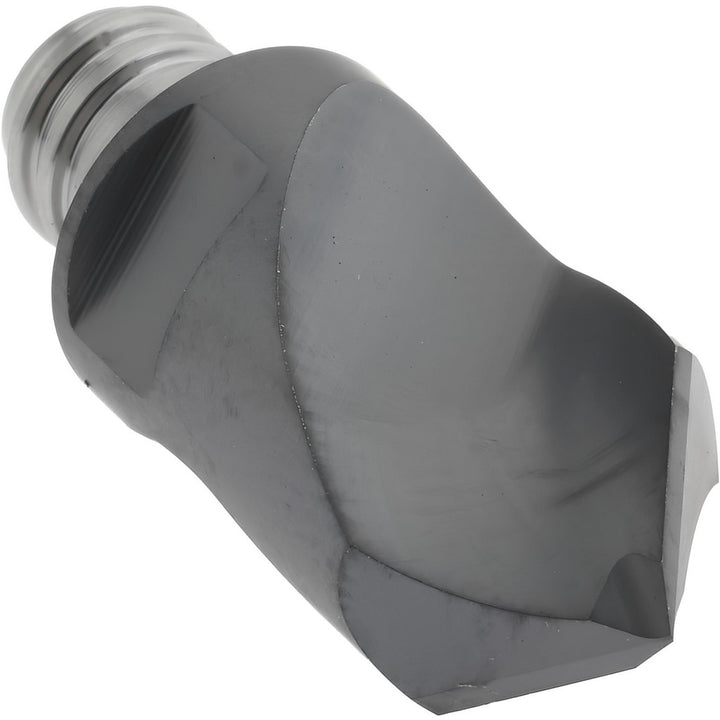

Carbide Insert, Grade IC908, TiAlN - Iscar 5607252
MFR# 5607252Series MM ECD
$91.15List $114.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5607252 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0degree
ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3940
Cutting width0.3940in
Extension from holder in0.7480
Functional length0.7486
Included angle degree90
Insert handRight Hand
Insert size10X90
Lead angle45
Manufacturers catalog number5607252
Manufacturer gradeIC908
Material gradeSub Micrograin
Milling tip full descriptionMM ECD-10X90-2T06
Milling tip styleMM ECD
Milling tip typeSpotting Drill
Number of flutes2
Overall length0.7486in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
