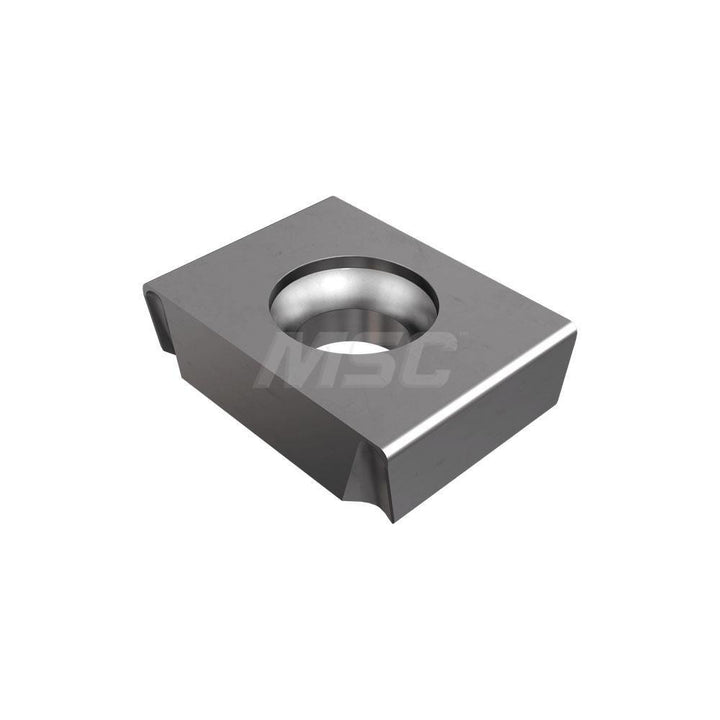

LNET 125516-TN Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5607260

Iscar

LNET 125516-TN Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5607260

MFR# 5607260ISO/ANSI# LNET 125516-TNCat# LNET 125516-TN IC910Series TANGSLOT

$24.91List $31.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5607260 is a LNET 125516-TN solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNET 125516-TN IC910
Chip breakerTN
Coating finishAlTiN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityFDN; SDN
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2165
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size12
Insert size code125516
Insert styleLNET
Iso codeLNET 125516-TN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberLNET 125516-TN IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle15
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in3/8
Thickness range0.3500 to 0.5000
Width in3/8
