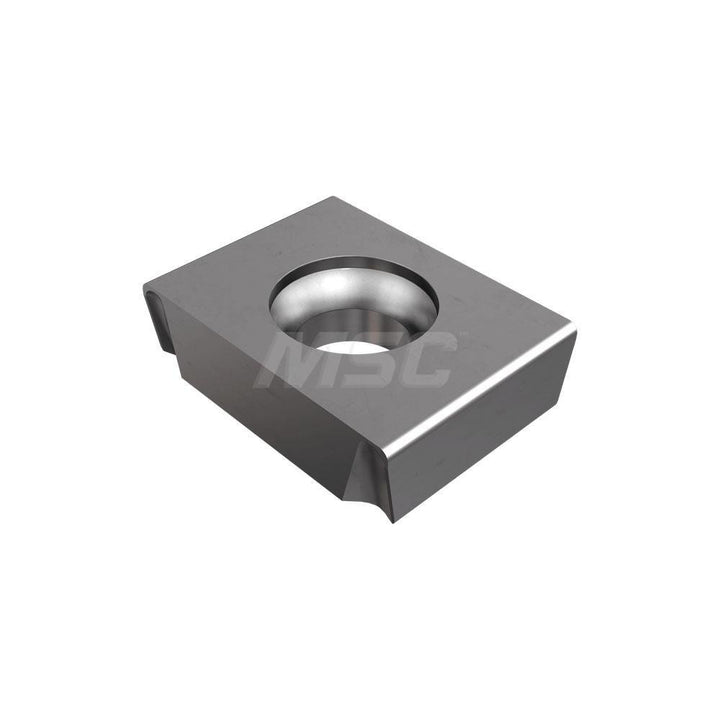

LNET 125516-TN Solid Carbide Insert, Grade IC328, TiCN - Iscar 5607261

Iscar

LNET 125516-TN Solid Carbide Insert, Grade IC328, TiCN - Iscar 5607261

MFR# 5607261ISO/ANSI# LNET 125516-TNCat# LNET 125516-TN IC328Series TANGSLOT

$24.91List $31.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5607261 is a LNET 125516-TN solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeLNET 125516-TN IC328
Chip breakerTN
Coating finishTiCN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityFDN; SDN
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2165
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size12
Insert size code125516
Insert styleLNET
Iso codeLNET 125516-TN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberLNET 125516-TN IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in3/8
Thickness range0.3500 to 0.5000
Width in3/8
