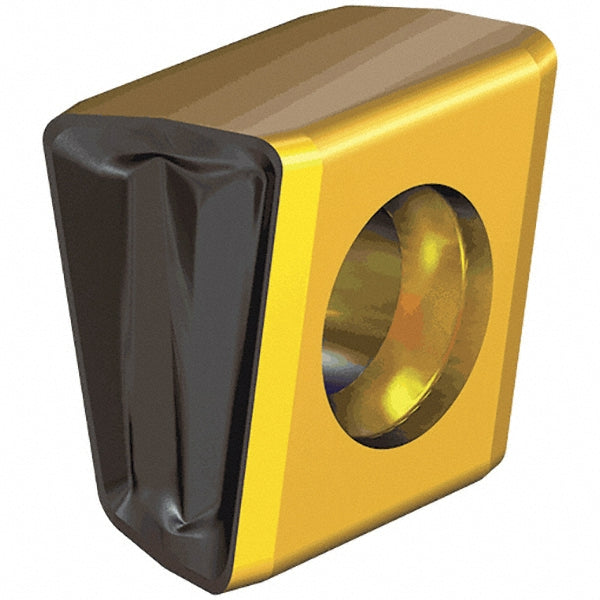

T490 LNHT 1106PNTR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607264

Iscar

T490 LNHT 1106PNTR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607264

MFR# 5607264ISO/ANSI# T490 LNHT 1106PNTRCat# T490 LNHT 1106PNTR IC830Series HELITANG

$33.57List $43.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5607264 is a T490 LNHT 1106PNTR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeT490 LNHT 1106PNTR IC830
Chip breakerPNTR
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityT490 LNK11
Cutting edge effective length0.4134
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size11
Insert size code1106
Insert styleLNHT
Iso codeT490 LNHT 1106PNTR
Length0.4134
Length range0.4000 to 0.4500
Manufacturers catalog numberT490 LNHT 1106PNTR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3540
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4450
Thickness range0.3500 to 0.5000
Width0.2360
