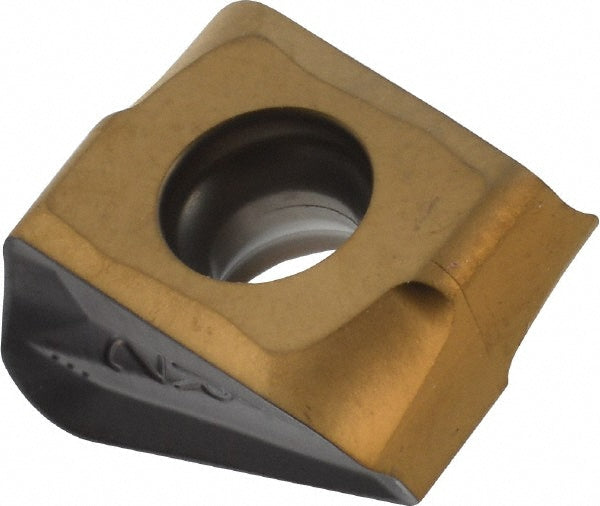

T490 LNMT 130631PNTR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607269

MFR# 5607269ISO/ANSI# T490 LNMT 130631PNTRCat# T490 LNMT 130631PNTR IC830Series HELITANG

$29.05List $37.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5607269 is a T490 LNMT 130631PNTR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeT490 LNMT 130631PNTR IC830
Chip breakerPNTR
Coating finishAlTiN
Coating processPVD
Corner radius0.1220
Cutter series compatibilityT490 LNK13
Cutting edge effective length0.5413
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2620
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size13
Insert size code130631
Insert styleLNMT
Iso codeT490 LNMT 130631PNTR
Length0.5413
Length range0.5000 to 0.6000
Manufacturers catalog numberT490 LNMT 130631PNTR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4900
Thickness range0.3500 to 0.5000
Width0.2620
