Iscar

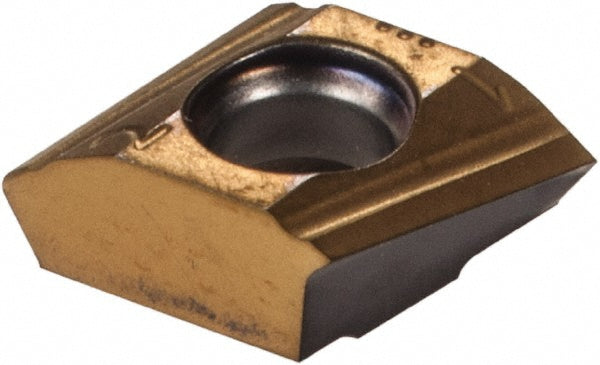

T290 LNHT 050202TR Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5607272
MFR# 5607272ISO/ANSI# T290 LNHT 050202TRCat# T290 LNHT 050202TR IC808Series SUMOMILL
$25.06List $32.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5607272 is a T290 LNHT 050202TR solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeT290 LNHT 050202TR IC808
Chip breakerTR
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutter series compatibilityT290
Cutting edge effective length0.2264
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.1060
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size05
Insert size code050202
Insert styleLNHT
Iso codeT290 LNHT 050202TR
Length0.2264
Length range0.0000 to 0.3200
Manufacturers catalog numberT290 LNHT 050202TR IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.1970
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2300
Thickness range0.2200 to 0.2350
Width0.1060
