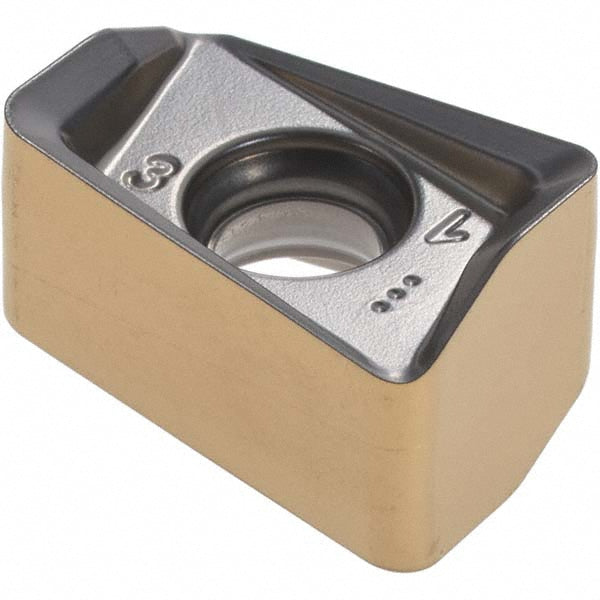

H490 ANKX 170616PNTR Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5607303

Iscar

H490 ANKX 170616PNTR Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5607303

MFR# 5607303ISO/ANSI# H490 ANKX 170616PNTRCat# H490 ANKX 170616PNTR IC808Series HELIDO

$31.63List $40.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5607303 is a H490 ANKX 170616PNTR solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeH490 ANKX 170616PNTR IC808
Chip breakerPNTR
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityH490 ANK17
Cutting edge effective length0.3940
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.4330
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170616
Insert styleANKX
Iso codeH490 ANKX 170616PNTR
Length0.6654
Length range0.6500 to 0.7000
Manufacturers catalog numberH490 ANKX 170616PNTR IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4130
Thickness range0.3500 to 0.5000
Width0.4330
