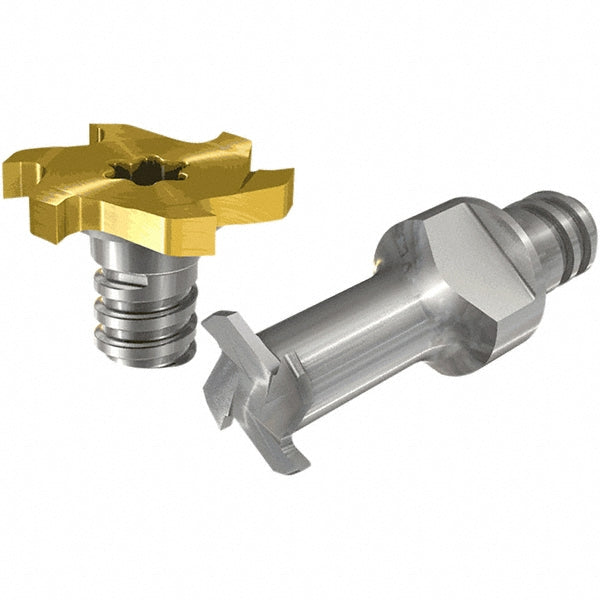

Carbide Insert, Grade IC908, TiAlN - Iscar 5607340

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5607340

MFR# 5607340Series MM TS-N

$119.16List $152.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5607340 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0079
Cutting diameter0.3034
Cutting width0.0315in
Extension from holder in0.5900
Included angle degree90
Insert handRight Hand
Insert size077-N08A
Lead angle90
Length of cut in3/64in
Manufacturers catalog number5607340
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.047
Milling tip full descriptionMM TS077-N08A-4T05
Milling tip styleMM TS-N
Milling tip typeT-Slot
Number of flutes4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
