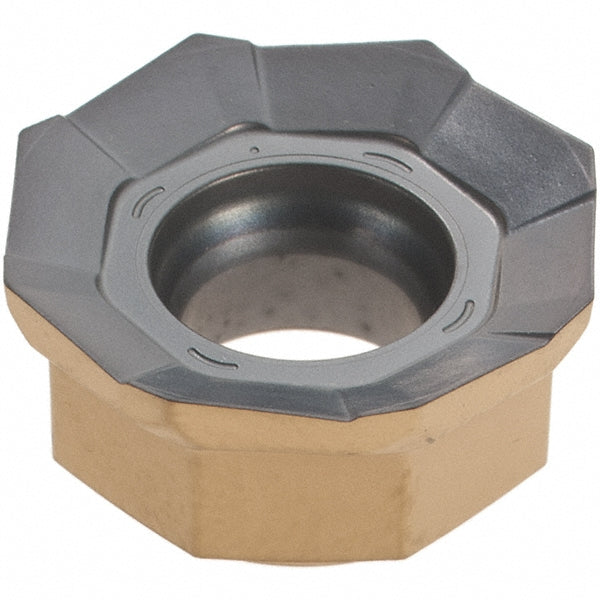

OXMT 050705-R-HP Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607355

Iscar

OXMT 050705-R-HP Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607355

MFR# 5607355ISO/ANSI# OXMT 050705-R-HPCat# OXMT 050705-R-HP IC830Series HELIDO

$22.88List $29.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5607355 is a OXMT 050705-R-HP solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeOXMT 050705-R-HP IC830
Chip breakerHP
Coating finishAlTiN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityFF SOF; SOF45; SOE45
Cutting edge effective length0.1693
Cutting edge styleHoned
Included angle degree135
Inscribed circle0.5945
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code050705
Insert styleOXMT
Iso codeOXMT 050705-R-HP
Length0.5945
Length range0.5000 to 0.6000
Manufacturers catalog numberOXMT 050705-R-HP IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.1060
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2760
Thickness range0.2500 to 0.3500
Width0.5945
