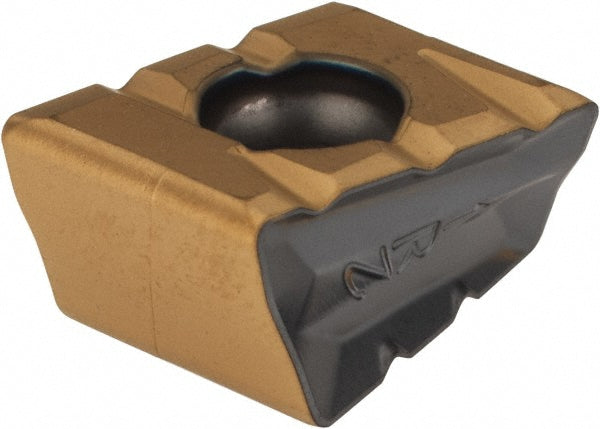

T490 LNMT 1306PNTR-CS Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5607357

Iscar

T490 LNMT 1306PNTR-CS Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5607357

MFR# 5607357ISO/ANSI# T490 LNMT 1306PNTR-CSCat# T490 LNMT 1306PNTR-CS IC810Series HELITANG

$27.88List $35.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Iscar 5607357 is a T490 LNMT 1306PNTR-CS solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.

Specifications

Ansi codeT490 LNMT 1306PNTR-CS IC810
Chip breakerCS
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0335
Cutter series compatibilityT490 LNK13
Cutting edge effective length0.5409
Cutting edge styleSegmented
Included angle degree90
Inscribed circle0.2620
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size13
Insert size code1306
Insert styleLNMT
Iso codeT490 LNMT 1306PNTR-CS
Length0.5409
Length range0.5000 to 0.6000
Manufacturers catalog numberT490 LNMT 1306PNTR-CS IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Maximum depth of cut0.4920
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5140
Thickness range0.5000+
Width0.2620
