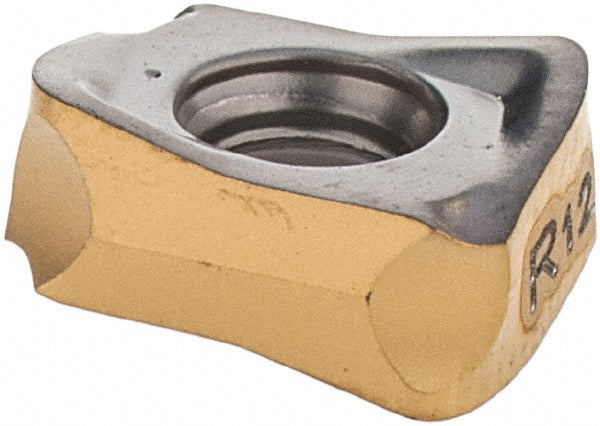

H490 ANKX 0904R12T-FF Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607371

Iscar

H490 ANKX 0904R12T-FF Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607371

MFR# 5607371ISO/ANSI# H490 ANKX 0904R12T-FFCat# H490 ANKX 0904R12T-FF IC830Series HELIDO

$31.85List $40.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5607371 is a H490 ANKX 0904R12T-FF solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeH490 ANKX 0904R12T-FF IC830
Chip breakerFF
Coating finishAlTiN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityH490 ANK09
Cutting edge effective length0.0390
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.2440
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code0904
Insert styleANKX
Iso codeH490 ANKX 0904R12T-FF
Length0.3350
Length range0.3200 to 0.4000
Manufacturers catalog numberH490 ANKX 0904R12T-FF IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.0390
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1690
Thickness range0.1500 to 0.1750
Width0.2440
