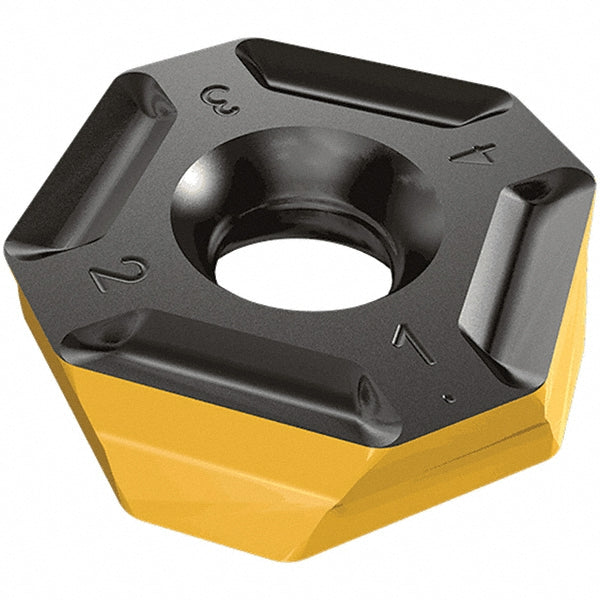

H690 TNKX 160610PNTR Solid Carbide Insert, Grade IC330, TiCN - Iscar 5607375

Iscar

H690 TNKX 160610PNTR Solid Carbide Insert, Grade IC330, TiCN - Iscar 5607375

MFR# 5607375ISO/ANSI# H690 TNKX 160610PNTRCat# H690 TNKX 160610PNTR 330Series HELIDO

$34.83List $44.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeIC330
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5607375 is a H690 TNKX 160610PNTR solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeH690 TNKX 160610PNTR 330
Chip breakerPNTR
Coating finishTiCN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityH690-16
Cutting edge effective length0.5310
Cutting edge styleHelical
Included angle degree60
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size16
Insert size code160610
Insert styleTNKX
Iso codeH690 TNKX 160610PNTR
Length0.6890
Length range0.6500 to 0.7000
Manufacturers catalog numberH690 TNKX 160610PNTR 330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5310
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.3940
Thickness range0.3500 to 0.5000
Width0.6890
