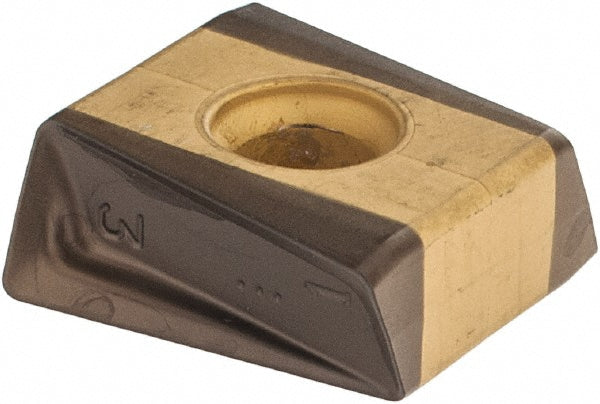

T490 LNMT 1607PN-R Solid Carbide Insert, Grade IC5400, TiCN - Iscar 5607418

Iscar

T490 LNMT 1607PN-R Solid Carbide Insert, Grade IC5400, TiCN - Iscar 5607418

MFR# 5607418ISO/ANSI# T490 LNMT 1607PN-RCat# T490 LNMT 1607PN-R IC5400Series HELITANG

$30.53List $39.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC5400
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5607418 is a T490 LNMT 1607PN-R solid carbide indexable insert, grade IC5400, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeT490 LNMT 1607PN-R IC5400
Chip breakerPN-R
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutter series compatibilityT490 LNK16
Cutting edge effective length0.6713
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2760
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size16
Insert size code1607
Insert styleLNMT
Iso codeT490 LNMT 1607PN-R
Length0.6713
Length range0.6500 to 0.7000
Manufacturers catalog numberT490 LNMT 1607PN-R IC5400
Manufacturer gradeIC5400
Material applicationSteel; Stainless Steel
Maximum depth of cut0.6300
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.6230
Thickness range0.5000+
Width0.2760
