Iscar

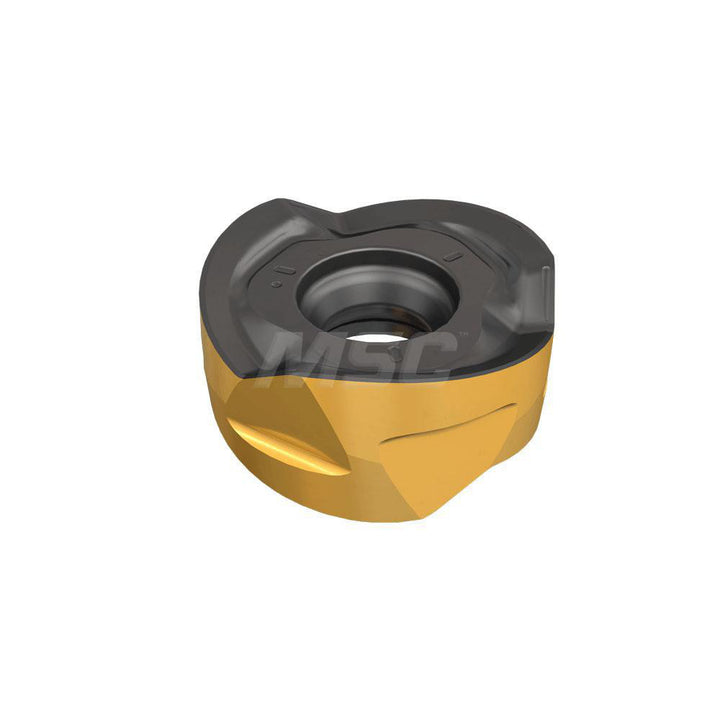

H606 RXCU 1206-AXMP Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607420
MFR# 5607420ISO/ANSI# H606 RXCU 1206-AXMPCat# H606 RXCU 1206-AXMP IC830Series HELIDO
$25.19List $31.70
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5607420 is a H606 RXCU 1206-AXMP solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeH606 RXCU 1206-AXMP IC830
Chip breakerAXMP
Coating finishAlTiN
Coating processPVD
Corner radius0.2362
Cutter series compatibilityH606 FR12
Cutting edge effective length0.4724
Cutting edge styleSharp
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1206
Insert styleRXCU
Iso codeH606 RXCU 1206-AXMP
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberH606 RXCU 1206-AXMP IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2320
Thickness range0.2200 to 0.2350
Width0.4724
