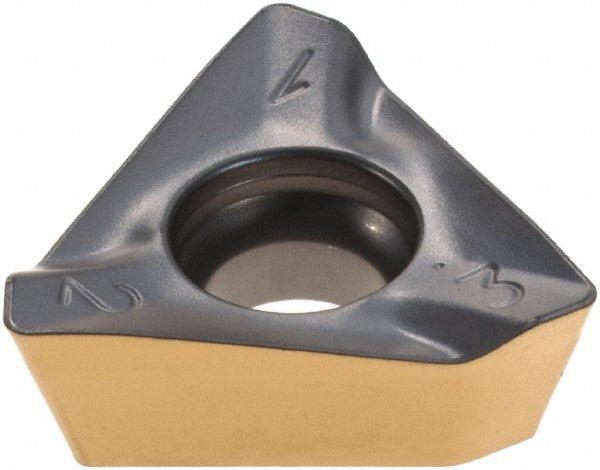

HM390 TDKT 1505PDR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607423

Iscar

HM390 TDKT 1505PDR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607423

MFR# 5607423ISO/ANSI# HM390 TDKT 1505PDRCat# HM390 TDKT 1505PDR IC830Series HELI3MILL

$22.57List $28.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5607423 is a HM390 TDKT 1505PDR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHM390 TDKT 1505PDR IC830
Chip breakerPDR
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM390-15
Cutting edge effective length0.5120
Cutting edge styleHelical
Included angle degree60
Inscribed circle0.4490
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size15
Insert size code1505
Insert styleTDKT
Iso codeHM390 TDKT 1505PDR
Length0.6580
Length range0.6500 to 0.7000
Manufacturers catalog numberHM390 TDKT 1505PDR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5120
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2300
Thickness range0.2200 to 0.2350
Width0.6580
