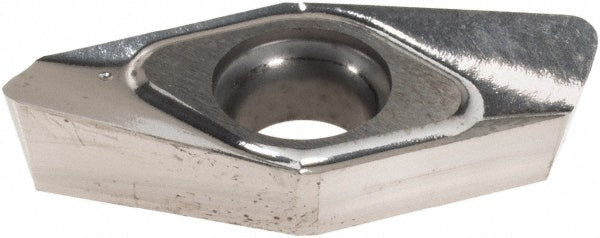

HSM90S APCR 140516R-P Solid Carbide Insert, Grade IC28 - Iscar 5607488

Iscar

HSM90S APCR 140516R-P Solid Carbide Insert, Grade IC28 - Iscar 5607488

MFR# 5607488ISO/ANSI# HSM90S APCR 140516R-PCat# HSM90S APCR 140516R-P IC28Series HELIALU

$47.39List $60.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5607488 is a HSM90S APCR 140516R-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeHSM90S APCR 140516R-P IC28
Chip breakerP
Coating processUncoated
Corner radius0.0630
Cutter series compatibilityHSM90-14
Cutting edge effective length0.3940
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.4920
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code140516
Insert styleAPCR
Iso codeHSM90S APCR 140516R-P
Length in63/64
Length range0.9000 to 1.0000
Manufacturers catalog numberHSM90S APCR 140516R-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Maximum depth of cut0.5310
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.4920
