Iscar

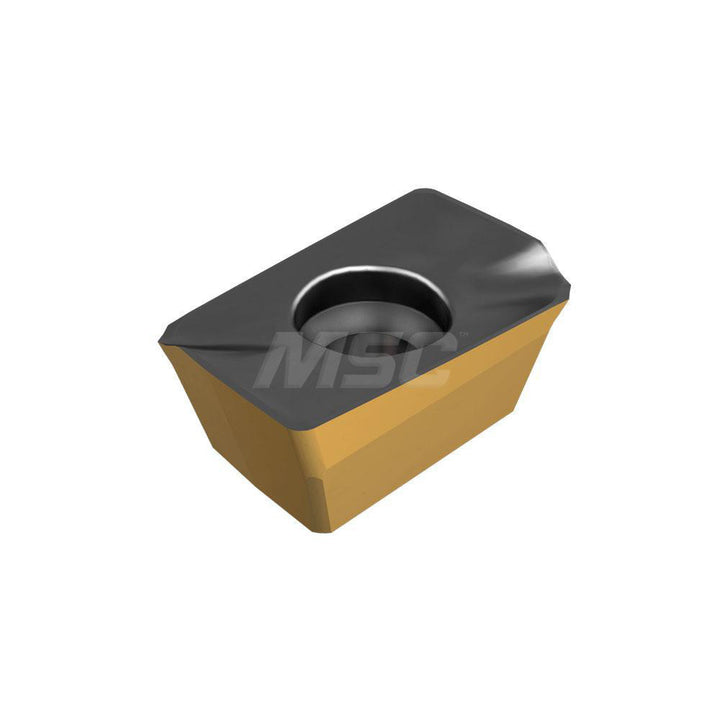

HM90 ADCT 1505PDR-PL Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5607498
MFR# 5607498ISO/ANSI# HM90 ADCT 1505PDR-PLCat# HM90 ADCT 1505PDR-PL IC808Series HELI2000
$35.06List $44.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5607498 is a HM90 ADCT 1505PDR-PL solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeHM90 ADCT 1505PDR-PL IC808
Chip breakerPL
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM90-15
Cutting edge effective length0.5710
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3800
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADCT
Iso codeHM90 ADCT 1505PDR-PL
Length0.6370
Length range0.6000 to 0.6500
Manufacturers catalog numberHM90 ADCT 1505PDR-PL IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2300
Thickness range0.2200 to 0.2350
Width0.3800
