Iscar

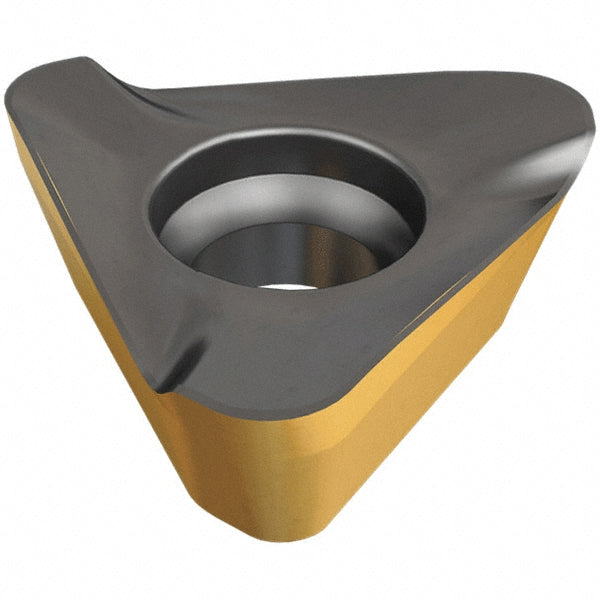

HM390 TDCT 1505PDR Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5607509
MFR# 5607509ISO/ANSI# HM390 TDCT 1505PDRCat# HM390 TDCT 1505PDR IC808Series HELI3MILL
$27.96List $35.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5607509 is a HM390 TDCT 1505PDR solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeHM390 TDCT 1505PDR IC808
Chip breakerPDR
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM390-15
Cutting edge effective length0.4720
Cutting edge styleHelical
Included angle degree60
Inscribed circle0.4488
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size15
Insert size code1505
Insert styleTDCT
Iso codeHM390 TDCT 1505PDR
Length0.6610
Length range0.6500 to 0.7000
Manufacturers catalog numberHM390 TDCT 1505PDR IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2390
Thickness range0.2350 to 0.2500
Width0.6610
