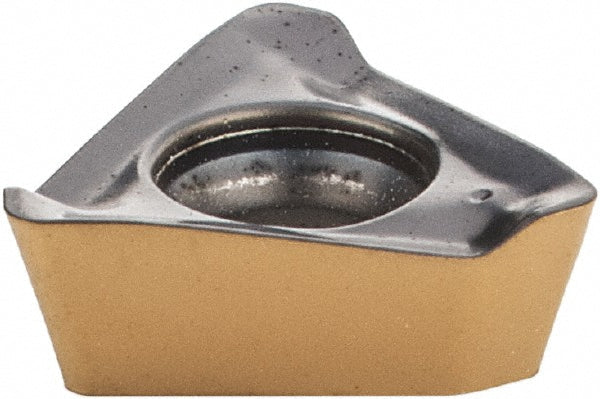

HM390 TPKT 1003PDR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607512

Iscar

HM390 TPKT 1003PDR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607512

MFR# 5607512ISO/ANSI# HM390 TPKT 1003PDRCat# HM390 TPKT 1003PDR IC830Series HELI3MILL

$20.69List $26.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5607512 is a HM390 TPKT 1003PDR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHM390 TPKT 1003PDR IC830
Chip breakerPDR
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM390-10
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree60
Inscribed circle0.2953
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size10
Insert size code1003
Insert styleTPKT
Iso codeHM390 TPKT 1003PDR
Length0.4290
Length range0.4000 to 0.4500
Manufacturers catalog numberHM390 TPKT 1003PDR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1520
Thickness range0.1500 to 0.1750
Width0.4290
