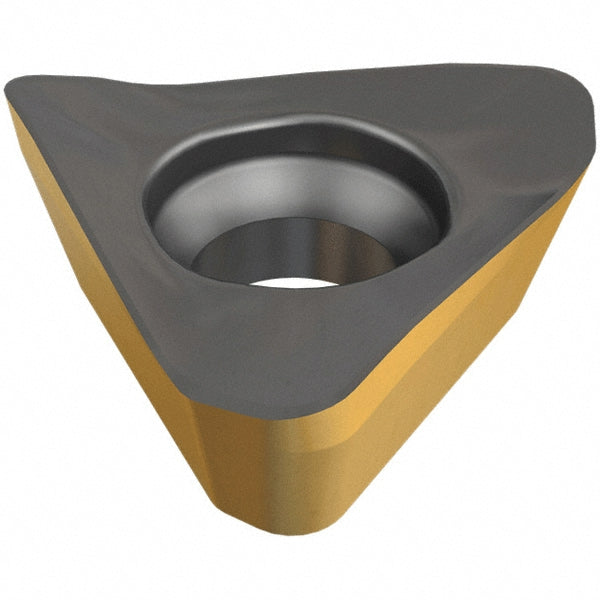

HM390 TPCR1003PDFR-P Solid Carbide Insert, Grade IC28 - Iscar 5607518

Iscar

HM390 TPCR1003PDFR-P Solid Carbide Insert, Grade IC28 - Iscar 5607518

MFR# 5607518ISO/ANSI# HM390 TPCR1003PDFR-PCat# HM390 TPCR1003PDFR-P IC28Series HELI3MILL

$24.05List $30.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5607518 is a HM390 TPCR1003PDFR-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeHM390 TPCR1003PDFR-P IC28
Chip breakerPDFR-P
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityHM390-10
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree60
Inscribed circle0.2953
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size10
Insert size code1003
Insert styleTPCR
Iso codeHM390 TPCR1003PDFR-P
Length0.4290
Length range0.4000 to 0.4500
Manufacturers catalog numberHM390 TPCR1003PDFR-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1570
Thickness range0.1500 to 0.1750
Width0.4290
