Iscar

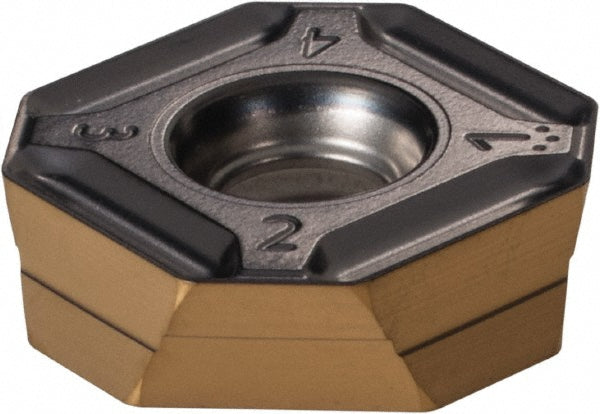

IQ845 SYHU 0704ADN-MM Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5607522
MFR# 5607522ISO/ANSI# IQ845 SYHU 0704ADN-MMCat# IQ845 SYHU 0704ADN-MM IC808Series DOVEIQMILL
$32.49List $41.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5607522 is a IQ845 SYHU 0704ADN-MM solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeIQ845 SYHU 0704ADN-MM IC808
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityIQ845
Cutting edge effective length0.5118
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.5433
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size07
Insert size code0704
Insert styleSYHU
Iso codeIQ845 SYHU 0704ADN-MM
Length0.5433
Length range0.5000 to 0.6000
Manufacturers catalog numberIQ845 SYHU 0704ADN-MM IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.1810
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1650
Thickness range0.1500 to 0.1750
Width0.5433
