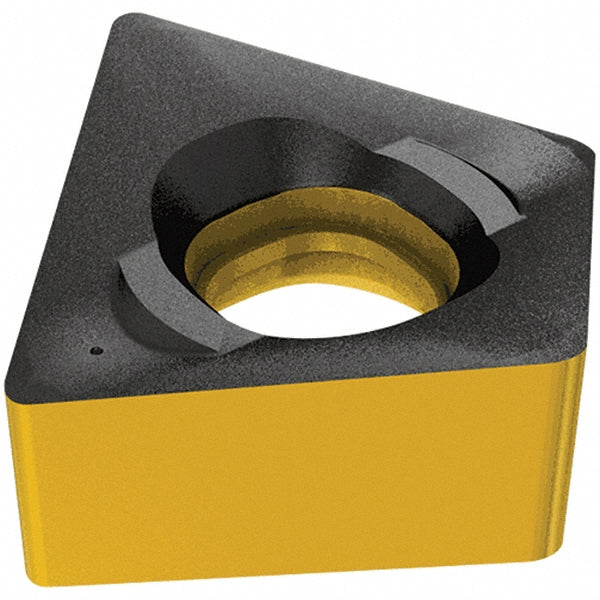

XNMU 130608PNTN Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5607636

Iscar

XNMU 130608PNTN Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5607636

MFR# 5607636ISO/ANSI# XNMU 130608PNTNCat# XNMU 130608PNTN IC810Series HELISLOT

$23.27List $29.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Iscar 5607636 is a XNMU 130608PNTN solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.

Specifications

Ansi codeXNMU 130608PNTN IC810
Chip breakerPNTN
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityETS-XN13; FDN-XN13; SDN-XN13; SM-XN13
Cutting edge effective length0.4803
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.5120
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code130608
Insert styleXNMU
Iso codeXNMU 130608PNTN
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberXNMU 130608PNTN IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Maximum depth of cut0.4803
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.3460
Thickness range0.2500 to 0.3500
Width0.5120
